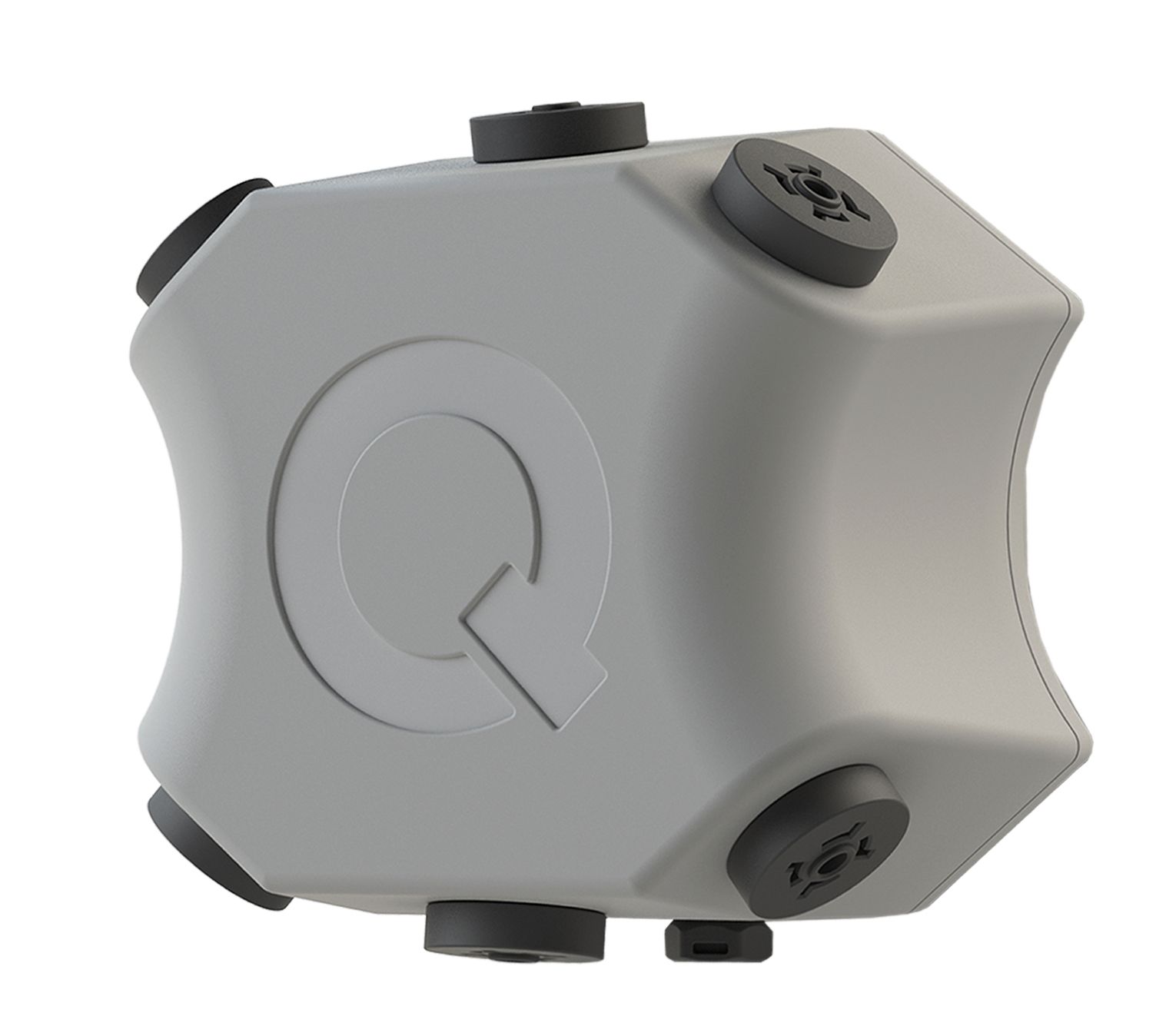

External Zhaga Hub Docking Station
Enhancing Smart Pole Capabilities with Advanced Connectivity and Control
Elevate your smart pole integration with the External Zhaga Hub Docking Station, a hub designed to be the foundational unit for an array of Smart Pole modules and sensors. This compact station excels in eco and weather monitoring, providing reliable data transmission to the QULON server, and seamless management of your smart systems.
Smart Pole Ecosystem Expansion
This hub station acts as a core component in the Smart Pole ecosystem, facilitating easy and efficient installation of sensors and modules, and supporting real-time environmental surveillance.
Firmware Management
Remote firmware upgrade capability keeps your system on the cutting edge without the need for onsite interventions.
Hot-Swap Functionality
Change or add sensors as needed—without any system downtime—thanks to hot-swappable connections.
Versatile Module Integration - Six Zhaga connectors for connecting a variety of sensors and modules to enhance monitoring and control capabilities.
Advanced Weatherproofing - IP65 rated plastic casing delivers superior protection against dust and moisture ingress, allowing for worry-free outdoor installation.
Real-time Data Transmission - Utilizes a Zhaga GSM Node for seamless mobile network communication, ensuring timely alerts and data-driven decisions.
- Physical:
Housing: protected
Material: plastic
Dimensions, mm: 173(L) x 138(H) x 99(W)
Mass: 1 kg
Mass(wich stand): 1.2 kg
Mounting: on a support, a wall, etc - Power supply:
Input Voltage: ~100-277 V AC, 50/60 Hz
Input Power (max): 3 W
Input Power (max) with all sensors: 21 W
Sensor Power and central controller: –12-24 V - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 65
Certification: CE, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Control output interface: DALI 2.0
- Inputs / Outputs:
Connectors: Zhaga book 18, TH387
Sensors: ECO & Meteo sensors - Configuration / Indication:
Setup: Remote using the QULON
- Package Contents:
External Zhaga Hub Docking Station
- External Zhaga Hub Docking Station, mounting on a support, 6 zhaga connectors
- : QUL-SPHS-EX-Z6
- : 5060452247656
